List

Item

Description

1

Pixel Pitch

6mm

2

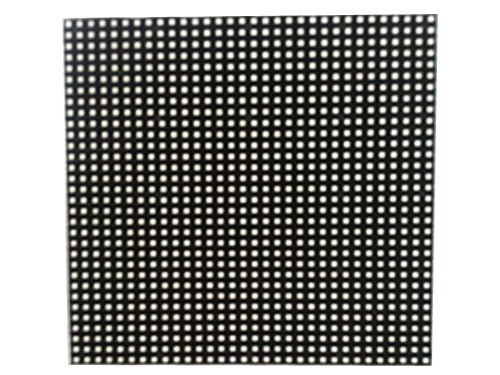

Module Size

192*192mm

3

Pixel Density

27,777/㎡

4

Pixel composition

1R1G1B

5

LED Type

SMD3535

6

Module Resolution

32*32

7

Power Consumption of Module

800W/s.q.m（Max.）

8

Power Consumption of Module

30W（typical.）

9

The Optimum Viewing Distance

10-100m

10

The Optimum Viewing Angle

140°/120°

13

Cabinet Size

960*960mm

14

Cabinet Resolution

160*160

15

Display Weight

55Kg/sqm
Water-proof

16

Service way

Rear  Access

17

Driving Method

1/8 Scan Constant Current Driving

18

Frame Frequency

≥60Hz/s

19

Refresh Rate

200Hz/s

20

White Balance
Luminance(CD/㎡)

≥6500cd/㎡

21

Operating Environment Temperature

-20℃—60℃ Optional

22

Operating Voltage

110V±10%

23

Grey Scale

Display Colors≥65.7trillion color(Synchronized)

24

Brightness Adjustment

1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically

25

Input Signal

RF、S-Video RF, S-Vido, RGB, RGBHV, YUV etc.

26

Control System

Asynchronous or synchronous

27

Average No Failure Time

＞5000 hours

28

Life-span

＞100000 hours

29

Out-of Control rate

＜0.0001

30

Transmiting Distance

Internet cable:< 100m
