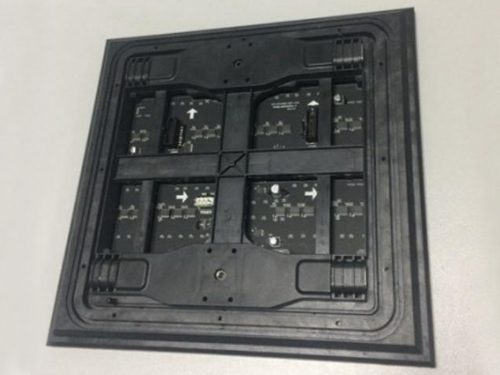

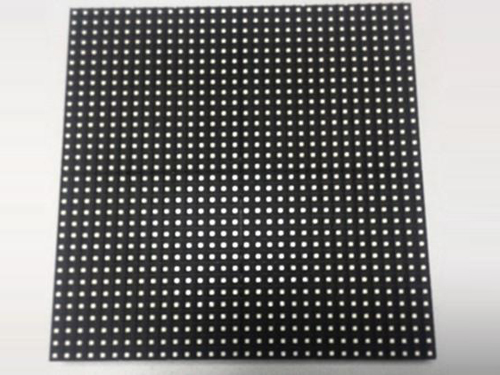

P9.525 is designed for the market which prefers to use the linear measure “feet”.
The module size is 1 foot by 1 foot.
List |
Item |
Description |
1 |
Pixel Pitch |
9.525mm |
2 |
Module Size |
1*1F |
3 |
Pixel Density |
11022/㎡ |
4 |
Pixel composition |
1R1G1B |
5 |
LED Type |
SMD3535 |
6 |
Module Resolution |
32*32 |
7 |
Power Consumption of Module |
58W/s.q.f（Max.） |
8 |
Power Consumption of Module |
40W（typical.） |
9 |
The Optimum Viewing Distance |
10-100m |
10 |
The Optimum Viewing Angle |
120°/120° |
11 |

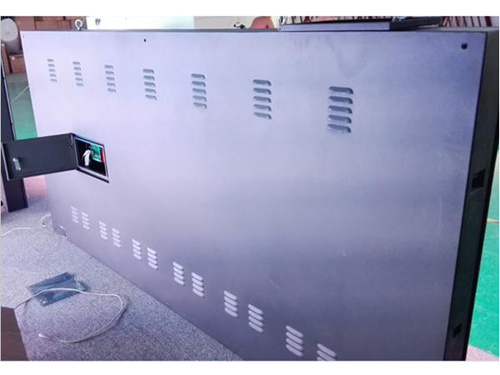

Cabinet Size |
nF*nF |
12 |
Cabinet Resolution |
n32X*n32 |
13 |
Display Weight |
55Kg/sqm |
14 |
Service way |
Front Access |
15 |
Driving Method |
1/4 Scan Constant Current Driving |
16 |
Frame Frequency |
≥60Hz/s |
17 |
Refresh Rate |
200Hz/s |
18 |
White Balance |
≥6500cd/㎡ |
19 |
Operating Environment Temperature |
-20℃—60℃ Optional |
20 |
Operating Voltage |
110V±10% |
21 |
|
Display Colors≥65.7trillion color(Synchronized) |
22 |
Brightness Adjustment |
1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically |
23 |
|
RF、S-Video RF, S-Vido, RGB, RGBHV, YUV etc. |
24 |
Control System |
Asynchronous or synchronous |
25 |
Average No Failure Time |
＞5000 hours |
26 |
Life-span |
＞100000 hours |
27 |
Out-of Control rate |
＜0.0001 |
28 |
Transmiting Distance |
Internet cable:< 100m |
